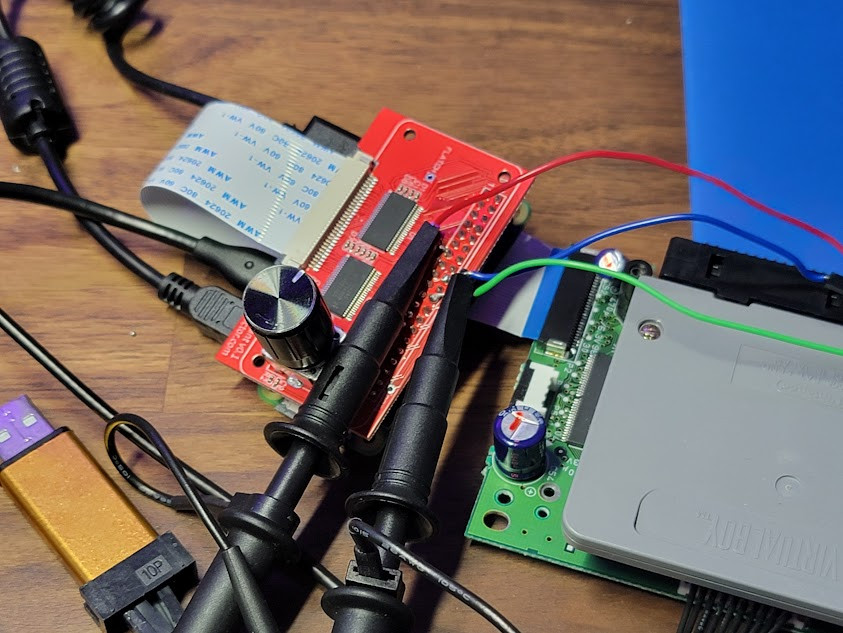

Prototype
This is a piece of hardware that allows you to connect a Virtual Boy to a TV via HDMI. It is built around a Raspberry Pi Zero 2 W running bare metal software.
Features
- HDMI Output
- Brightness Level Support
- Support for both eyes
- Multiple output modes:
- Anaglyph
- Single-eye
- 3D TV
- Built-in UI controllable via an on-device dial
- USB controller input support (sorry, no bluetooth)
- USB video output and button input mode to support the Cloud VB project
- Servo emulation support for true consolization
- Solderless set up (although you’ll need to swap out cables going to the VB motherboard)
Unfortunately, sound output via HDMI can’t be supported.
Project Status
- ✅ PCB Design
- ✅ HDMI I/O
- ✅ Cloud VB support
- 🔲 UI-based configuration
- 🔲 USB Controller Support
- 🔲 Enclosure
- 🔲 Distribution Plan
